CGI Inc., a leading manufacturer of custom precision gearboxes and mechanical subassemblies, now sells a new line of IP69K-rated precision planetary gearheads. These Raptor-SS series gearheads are washdown ready and built with advanced heat-treated materials — with stainless-steel construction or a white epoxy coating.

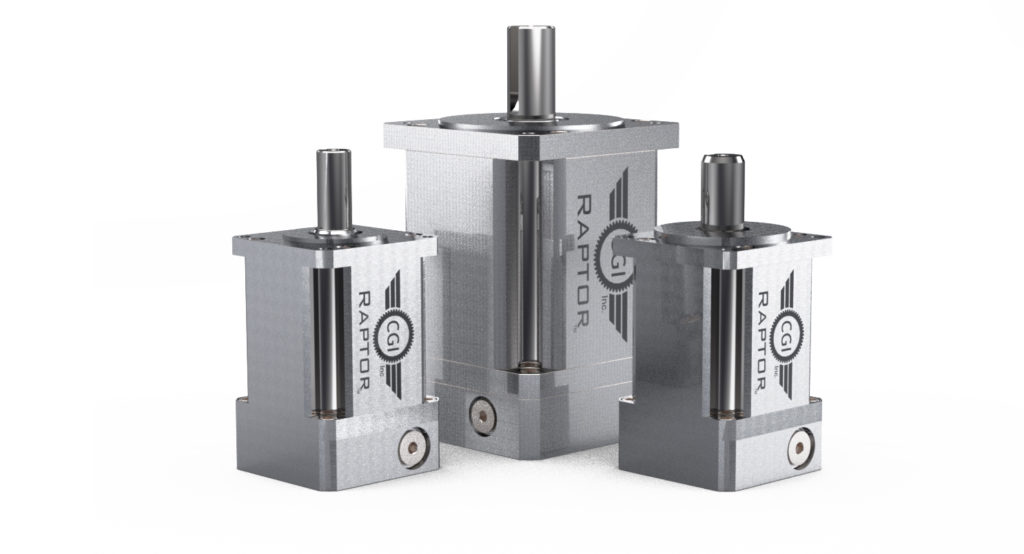

These Raptor-SS series gearheads from CGI Inc. are rated IP69K, so are suitable for washdown environments in the medical and food and beverage industries.
Raptor-SS gearheads are compact (with lengths from 3.39 to 7.63 in.) and have a captive input pinion; high-torque gear geometry; and exceptional stiffness and loading characteristics. They can mount in any direction and accept input speeds to 6,500 rpm. Service life exceeds 15,000 hours.
The IP69K-rated gearheads come in:
- 一个，两个或三个阶段的配置（分别为4、6和8弧线），以降低速度比率为4：1至700：1-，从三阶段版本中可能还有其他比率
• Standard NEMA and metric configurations — and with other features for quick installation
• Versions with food-grade grease for food-related applications
Efficiencies are better than 95% for single-stage gearheads, 90% for two-stage gearheads, and 85% for three-stage gearheads in the Raptor-SS series. Operating range is -40° to +250° F.
Raptor-SS gearheads in023RTX（NEMA）和060RTX（度量）尺寸提供17至45 nm的名义扭矩；最大加速扭矩为22至53 nm；以及81至107 nm的峰值紧急扭矩。扭转刚度为15弧线。
Raptor-SS gearheads in034RTX（NEMA）和090RTX（度量）尺寸提供63至164 nm的名义扭矩；最大加速扭矩为80至207 nm；以及277至392 nm的峰值紧急扭矩。扭转刚度为70弧线。
除股票产品外，CGI Inc.还提供定制的齿轮解决方案。制造商的内部功能包括：
- 从初始设计和原型制作到全尺度生产的工程和设计支持 - 与OEM合作设计可满足或超过设计参数的可制造组件
•设计和组装完整的变速箱，并具有研磨，转弯，铣削，瑞士型和多样化的加工功能，以自定义各种齿轮设计
热处理,激光焊接ing, and electrical discharge machining (EDM)
• Execution of testing and validation to help customers get industry approvals; support of inventory management and KANBAN integration to streamline supply-chain management
For more information about these capabilities and the new Raptor-SS series of gearheads, visitwww.cgimotion.com.
From Prototype to Production CGI Motion enables design excellence across a wide range of industrial applications. We thrive on customer driven innovation in precision gearbox, precision machined components and electro-mechanical assembly solutions ranging from aerospace systems to semiconductor applications. We are your design and manufacturing partner helping to differentiate your product, machine or innovation. Our team of problem solving engineers and product managers can bring your application to market on time and under budget. Whether it’s an improvement on a current design or groundbreaking new designs, CGI has the know-how and team to enable design excellence. Connect with us today to explore what CGI Motion can do for you.
