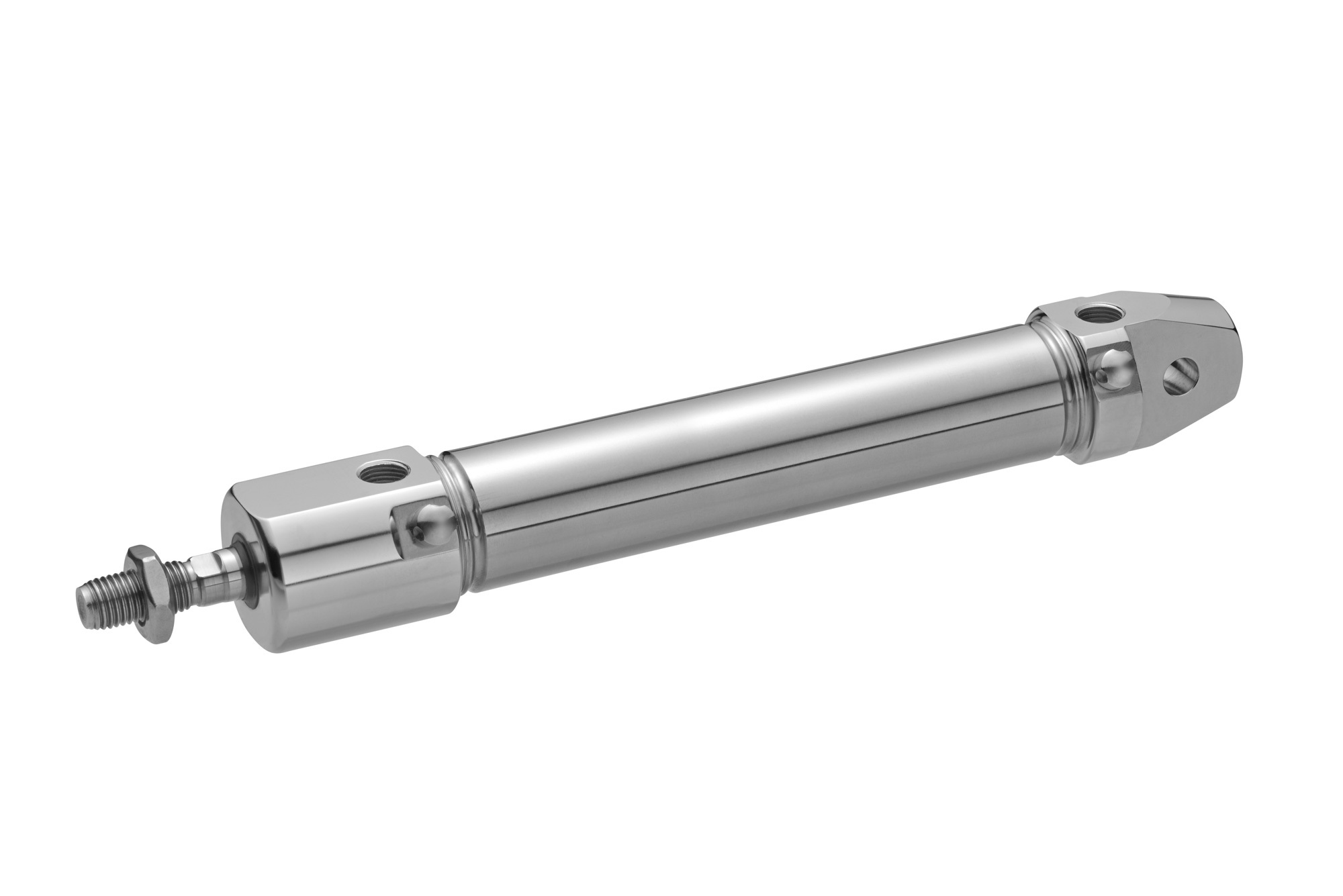

The AVENTICS CSL-RD pneumatic mini cylinders are hygienically designed and fabricated from 304 stainless steel, providing great coverage of food and packaging applications. The CSL-RD ISO 6432 cylinders come in three versions. The food processing-optimized FRE version has no external mounting threads, avoiding food and bacteria traps.
The electro-polished construction (smoothed to no more than 0.8µm) prevents beading of caustic washdown solutions, allowing the solution to run off the cylinder to leave it clean and dry. A PEEK rod bearing further enhances the corrosion resistance. In addition to its high performance, the rod scraper material was subjected to intensive tests with standard industrial cleaners to ensure optimum chemical resistance. All versions include elastic cushioning and some include pneumatic cushioning. The standard NSF-H1 grease makes the CSL-RD the ideal choice for food processing applications. Besides optional strokes, other options available include heat resistant models, and piston rod extensions.
The CSL-RD cylinders also feature a captive name plate. It is applied via laser technology to the tubing and keeps the identification legible even after repeated cleaning cycles. The CSL-RD cylinders come in bore sizes 16mm, 20mm and 25 mm.
AVENTICS
www.aventics.com/us
