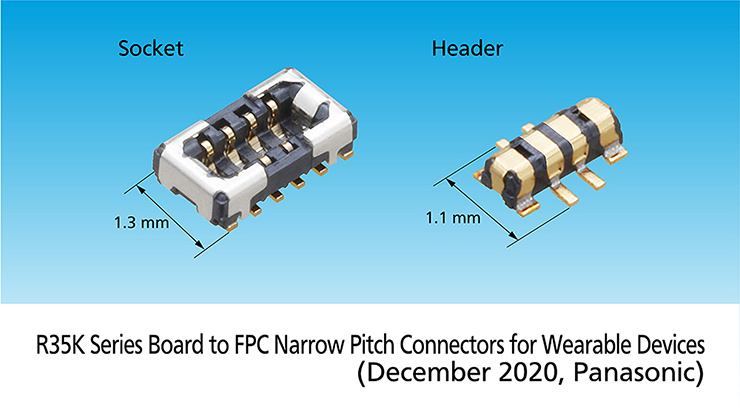

Panasonic Corp.announced today that its Industrial Solutions Co. has commercialized the R35K series of board to FPC narrow pitch connectors for use in wearable devices and will launch full scale mass production this month. The new connectors reduce the board mounting areas and are configured to be highly resistant to vibrations and impacts, contributing to reducing the size and weight and improving the reliability of such small electronics devices.
诸如腕带，耳机和AR / VR眼镜等可穿戴设备广泛用于各种领域，包括医疗保健，娱乐和制造，预计会进一步发展并扩大其市场，以防止由于衰退增加了健康意识和劳动力短缺的背景出生率和老龄化人口。然而，可穿戴设备中使用的当前主流连接器具有由于由其双排终端结构引起的复杂的布线路线而需要大型板安装区域的问题。
The newly developed connectors, with a single-row terminal structure, enable wiring from terminals of only one side, achieving an approximately 49% smaller board mounting area than Panasonic’s conventional products (S35 series), which helps reduce the size and weight of wearable devices . With Panasonic’s unique structure, the header and socket cannot easily be removed or break, which also improves device reliability. The connectors have also achieved large currents despite their small size, with the power terminal supporting up to 3 A and the signal terminal 0.3 A, meeting needs for fast battery charging, thereby further promoting the widespread use of wearable devices.
Panasonic的新型R35K系列板FPC窄间距连接器具有以下功能：
- 单行终端结构可减少安装区域并便于电路设计。
- Panasonic’s unique structure, which is highly resistant to vibrations and impacts, improves device reliability.
- Their support for large currents meets needs for fast battery charging.
Panasonic Corp.
www.panasonic.com
