Zero-Max ETP Shaft Locking Bushings

Plymouth, MN– ETP Shaft locking bushings from Zero-Max produce accurate and concentric mounting compared to mechanical shaft locking bushings.

ETP衬套结合了封装压力介质的双壁套筒。拧紧驱动螺钉后，它会迫使衬套的内壁和外壁均匀地膨胀在固定组件的轴和枢纽。结果是同心为.001英寸T.I.R.相比之下，机械设备依赖于精确拧紧的致动螺钉，以避免过度T.I.R.此外，机械衬套在轴上赋予极高的​​压缩力。

ETP bushings are ideal where repeated mounting and dismantling of components is required. ETP Bushings are consistently accurate and easy to use.

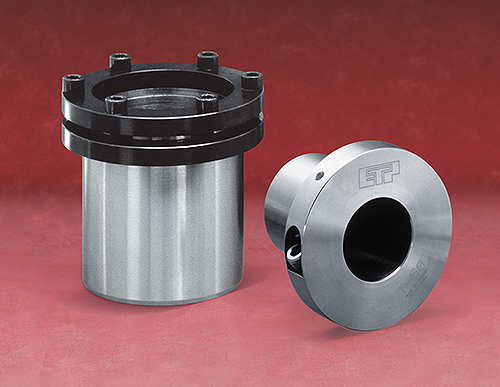

The ETP Classic has flange mounted actuation screws. The ETP Express has just one mounting screw positioned in a radial location. The single actuation screw of the ETP Express is the fastest and easiest way to mount components accurately. The single actuation screw saves space, time and is easy to access.

ETP Classic和ETP Express在温度范围为-22°至180°F的范围内。ETP经典处理扭矩范围为40至11,413英尺lbs，而ETP Express的扭矩处理范围为40至6,400 ft lbs。两者都不需要润滑。它们在标准钢和不锈钢的全英寸范围内可用。

Zero-Max
www.zero-max.com
