VNA测试电缆手柄50和67 GHz毫米波

PasterNack根据系列借鉴于50和67 GHz的新系列灵活精密VNA测试电缆。设计用于VNA检测端口扩展器，这些高度耐用且柔性的测试电缆能够承受测试实验室使用的严格，其中这些电缆在公共测试情况下不断弯曲。

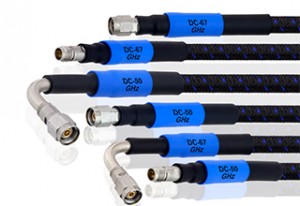

Pasternack.’s newest lines of highly flexible VNA test cables have excellent electrical properties including low VSWR of 1.3:1 at 50 GHz and 1.4:1 at 67 GHz as well as superb phase stability with flexure of +/- 6° at 50 GHz with the 2.4mm connectors and +/- 8° at 67 GHz using 1.85mm connectors. The braided stainless steel armoring surrounding the coax provides a rugged, but flexible cable with a flex life exceeding 100,000 cycles. The rugged stainless steel 2.4mm and 1.85mm connectors provide up to 5,000 mating cycles when attached with proper care. Additionally, the flexibility of these cables makes it easier and safer to test a Device Under Test (DUT). A swept right angle connector option allows these cables to fit in tight spaces and can reduce the length of cable required in many applications.

一些受益于Pasternack的新型柔性测试电缆的最常见的应用程序包括用作VNA测试端口扩展器，半导体探头测试，精确的台式测试和实验室/生产测试，在那里需要高度灵活而耐用的电缆解决方案。

Pasternack.
pasternack.com.
