A family of 1.35 mm board and cable connectors and cable assemblies from Samtec move mmWave signals.

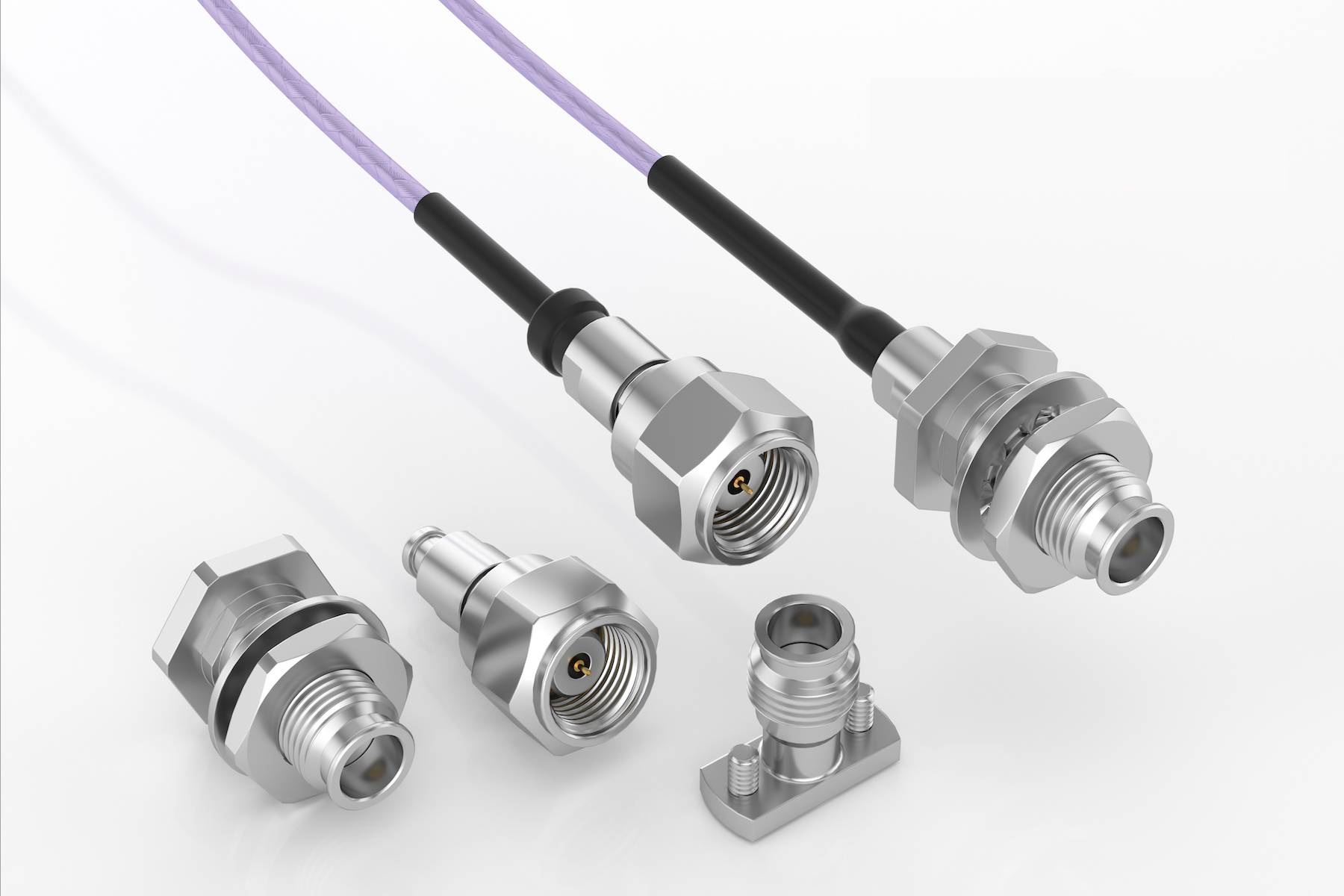

Samtec’s 1.35 mm RF connectors let you send signals at frequencies from DC to 90 GHz. The connector family includes
- The135 Series压缩板连接器,山
- ThePRF13 Seriescable connectors, and
- TheRF047-A Series0.047″ low-loss flexible cable assemblies.
You can use the 1.35 mm connectors and cable assemblies for E-band applications (60 GHz to 90 GHz) because of their high operating frequency and electrical precision. In addition to connectors for cables, Samtec offers what the company claims are the only 1.35 mm board connectors that use vertical compression mounting. The solderless launch lets you easily replace connectors on a board. Threaded coupling provides superior repeatability and mechanical stability. Samtec also offers microstrip and stripline options.
The RF047-A cable assembly has a maximum VSWR of 1.5:1. It also features a 5 mm minimum bend radius and insertion loss of 5 dB/ft at 90 GHz.
