伊利诺伊州罗克福德市 - 自2008年产品首次介绍以来，Integral V™技术（IVT）已继续获得动力，作为节省成本的解决方案，以实现精确的线性线性运动。PBC Linear的积分V线性指南系统已成功实施到各种应用程序中，PBC Linear的积分V线性指南系统已经有20多种不同的配置。现在，随着新开发的SIMO工艺（同时进行整体铣削操作），IVT准备提供更准确的线性运动，而安装较少。

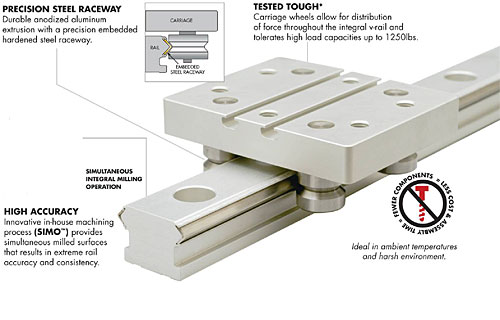

IVT creates a solution to the common problem of mounting a precision aligned system. Traditional linear guides not only require an entire menagerie of different mounting components, but they also have to undergo a scrupulous aligning process. Using the SIMO process, four synchronized drills concurrently mill an aluminum extrusion on all sides. Creating a consistent, precision-machined extrusion with tighter tolerances (±0.001” from lot to lot) at no added cost–making IVT a very efficient linear guide system in several industries.

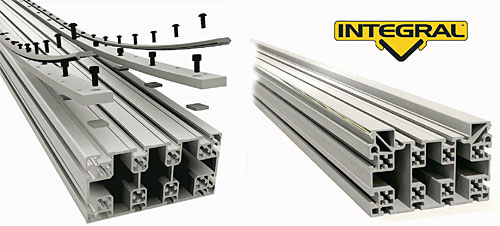

左：具有所有必要安装组件的传统技术。
右：Simo机械加工Integral V™技术。
Recently, Integral V Technology has been implemented in several manufacturing CNC milling machines. Using a customized integrated design, PBC Linear was able to use IVT to create a more cost effective, precise, aluminum extrusion without the added cost! As a result, IVT has been implemented into the design of the company’s new CNC milling system. Another example of how IVT applied was in extreme heat seaming machines. Installed in a newly designed seamer of thermoplastic material, Integral V saved the customer over 60% on installation time and costs! IVT has also been precision machined into PBC Linear’s complete line of Linear Actuator Technology (LAT) to ensure reliable accuracy all along the rail.
