Micro 3D printing technology innovator Nanofabrica released information recently about produced parts that illustrate the precision and tolerances achievable through the use of its Tera 250 AM system.
Nanofabrica的工业微型3D打印技术存在于3D打印的生产和行业范围的3D打印界面，并有助于设计师和制造商利用该技术在中小型，中，大量的范围内构建复杂的零件。
The technology is based around a Digital Light Processor (DLP) engine, but to achieve repeatable micron levels of resolution it combines DLP with the use of adaptive optics. This tool in conjunction with an array of sensors, allows for a closed feedback loop, which contributes to the system’s accuracy. In addition, through rigorous R&D, Nanofabrica has managed to develop its own proprietary materials (based on the most commonly used industry polymers), which enable high resolution in parts built.
叶轮

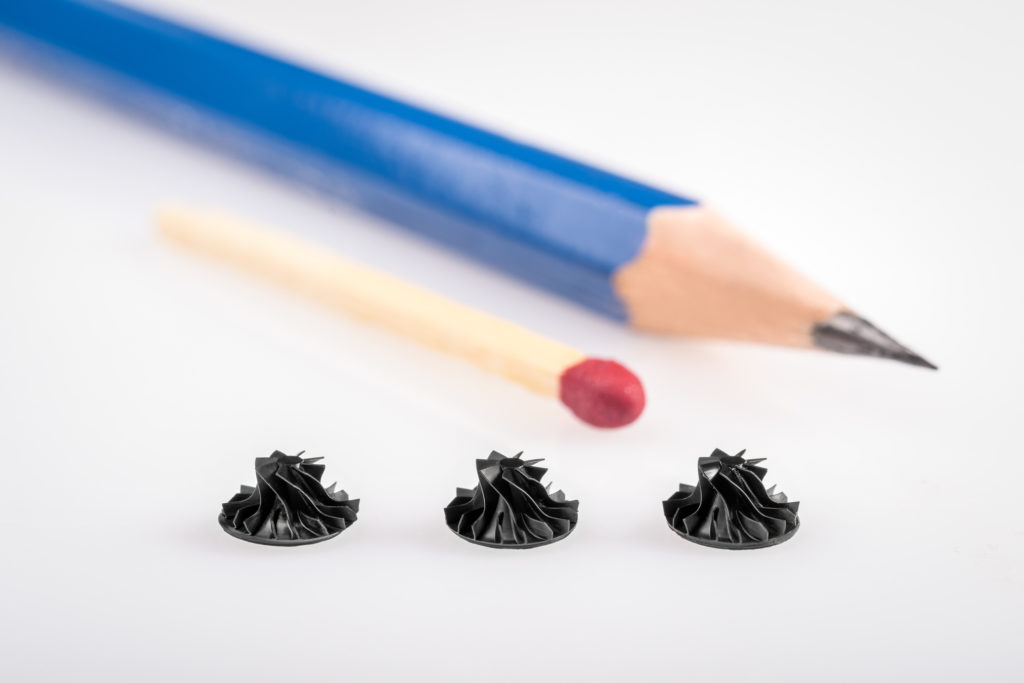

The first part is an industrial impeller which is used to increase the pressure and flow rate of a fluid measuring X 5.66 mm, Y 5.66 mm, and Z 2.87 mm. The advantage of using the Tera 250 machine is that short-series runs can be undertaken economically, and the technology handles geometric complexity inherent in the micro part design. The impeller is manufactured for use in industrial MEMS and micromechanical mechanisms. Additive manufacturing makes it easy to customize and produced quickly and economically without the necessity for complex, costly, and difficult to amend micro tooling.
The part is characterized by complex curves and super sharp edges that would be difficult and costly to produce using conventional molding technologies. Using the Tera 250, product development costs and production time is reduced, and the 50 mm x 50 mm x 100 mm build chamber can produce a number of custom parts simultaneously.

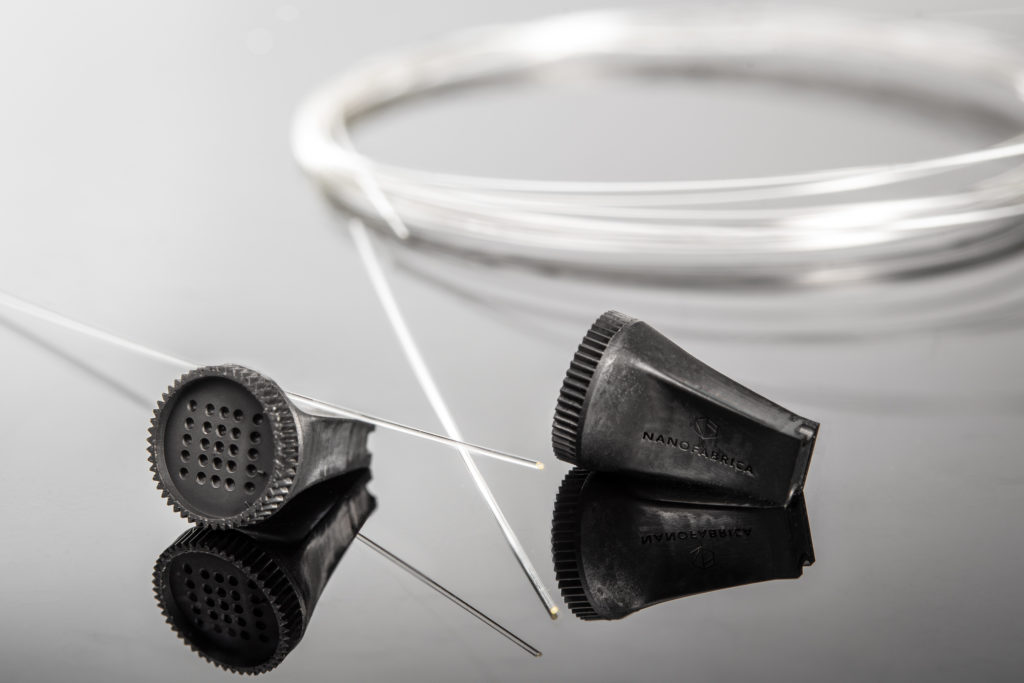

Fiber optic adapter
下一部分是光纤适配器，具有复杂的内弯曲腔/运河，用于喂养光纤。使用TERA 250，这些精确的零件可以生成严格的公差。适配器中的通道需要准确容纳250微米光纤，并且整个零件尺寸为x 9.0 mm，y 6.0 mm和z 6.0毫米。
Avi Cohen, EVP Global Sales at Nanofabrica comments, “We are delighted to be able to release details of some of the successes we have had using our 3D printing technology.”
Nanofabrica
www.nano-fabrica.com
