可移植性是3D扫描设备中的重要功能。MC-XL和MC-SO 3D扫描仪是在加利福尼亚州哥斯达黎加梅萨（Costa Mesa）建造的，该总部为航空航天和汽车行业设计了Capture 3D Inc.- 处理重30磅或更少的零件，适合消费行业。这两个版本都依靠以太网PowerLink（EPL）控制器和ARIES EPL伺服驱动器（从Parker Hannifin）精确控制多轴运动。

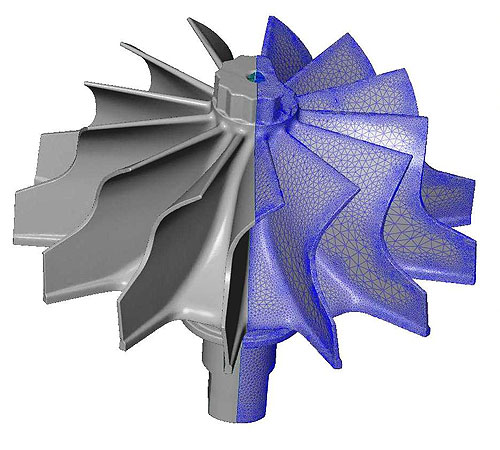

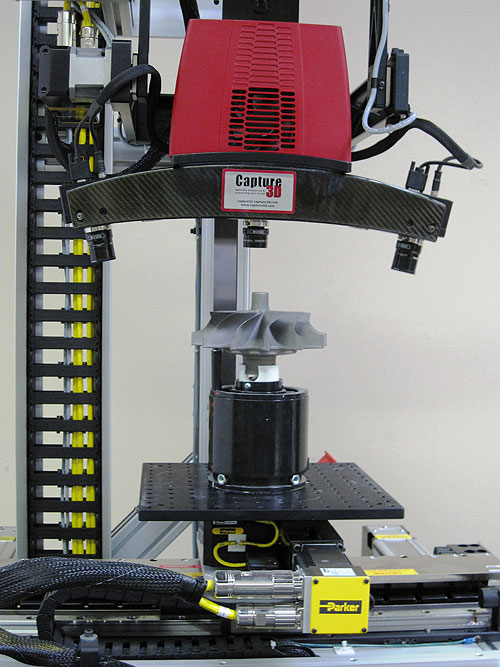

以太网PowerLink精确传递运动命令的能力使该3D扫描仪能够收集叶轮上的数据。
Each scanner uses six axes and two cameras to acquire an object’s data — everything from measurements to physical characteristics. The process requires precise position control of the six motion axes to preserve the integrity of the data acquired by the Advanced Topometric imaging sensor, or ATOS, as it moves around the part.
扫描仪使用三角剖分原理。这两个摄像机观察了投影的边缘图案。微处理器计算每个相机像素的三维坐标。最后，然后生成对象表面的多边形网。客户最终可能会使用对象皮肤的描述性数据通过/失败检查第一篇文章，以进一步分析快速原型，或进行反向工程，以复制手工制作或独一无二的部分。
The EPL-enabled products deliver real-time, deterministic motion control commands over standard Ethernet hardware. The Ethernet cabling simplifies installation, increases reliability, reduces set-up time and shrinks the required panel footprint. Because EPL systems require less space than traditional analog controls, the MC-XL and MC-SO are able to go where other scanning machines cannot.
The scanning software integrates easily with the ACR controller. The flexibility to use internal programs that can be controlled remotely delivers an automated, easy-to-use measurement system to clients. They can develop automated processes with no prior knowledge of motion control systems.
