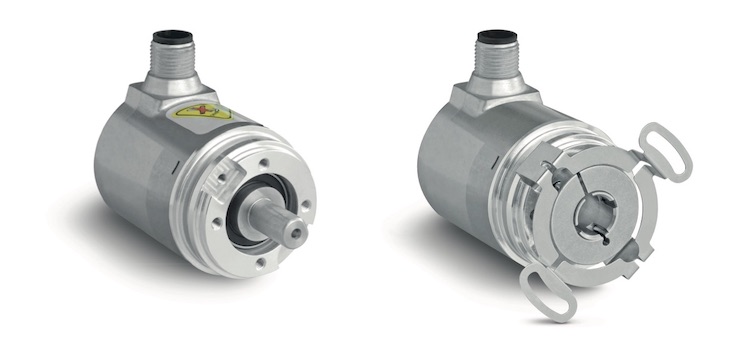

新的AV3650M和AH3650M的绝对旋转式编码器从Siko中编码在非常紧凑的外壳中结合精确而可靠的位置测量。绝对位置值通过几个集成的模拟界面（例如0到10 V，0至5 V和4至20 mA）传输。
These encoders use the magnetic measuring principal, with a multi-turn system which is based on Energy Harvesting Technology. This means that the measurement of several revolutions is possible without the use of a mechanical gearbox or battery backup. As a result, these sensors are not only wear and maintenance free, but are cost efficient. Despite the extremely compact design and with an outer diameter of only 36 mm, these rotary encoders can record more than 65,000 revolutions absolutely and precisely. Thanks to the integrated teach-in functionality, users also have the option of simply adapting the analog current or voltage interface to the required measuring range of the application and obtaining the best possible measurement result.
传感器的另一个优点是它们的稳健设计。不管它是振动，污垢，水分还是温度，具有IP67保护且温度范围从-40°至 +85°C范围，这些传感器非常适合恶劣的环境。由于设计小，旋转编码器特别适合在安装空间有限的应用中使用。旋转编码器变体AV3650M和AH3650M在安装在机器上时具有高度的灵活性。空心和实心轴版本分别是AH3650M和AV3650M，有几个不同的直径选项。这两个传感器均具有标准安装配置，从而使设计工程师在其机器概念中具有完全的灵活性。
有关更多信息，请访问www.siko-global.com。
