Position sensing is a critical function across a wide range of applications, from robot drive chains to conveyor belts in supply chain operations to the swaying of wind turbine towers. It can take many forms, including linear, rotary, angular, absolute, incremental, contact, and non-contact sensors. Specialized sensors have been developed that can determine positions in three dimensions. Position sensing technologies include potentiometric, inductive, eddy current, capacitive, magnetostrictive, Hall effect, fiber optic, optical and ultrasonic.
This FAQ briefly presents the various forms of position sensing and then reviews an array of technologies that designers can select from when implementing a position sensing solution.
选择位置传感器时有许多因素需要考虑。一些示例包括：
- Position measurements can be linear, rotary, or angular and can be static or dynamic (measuring speed and/or acceleration).
- Linear sensors are typically limited to a specific measurement range, while rotary sensors usually provide measurements in terms of revolutions or degrees.
- These sensors can be based on contact or non-contact technologies. Contact sensors are often less expensive, while non-contact sensors tend to be more reliable.
- A resolver is a specialized non-contact rotary sensor that can provide both position and velocity feedback.
- 有些传感器仅提供从一个点到另一点的增量测量值，而另一些传感器则提供了相对于特定参考点的绝对位置信息。
Potentiometric position sensors

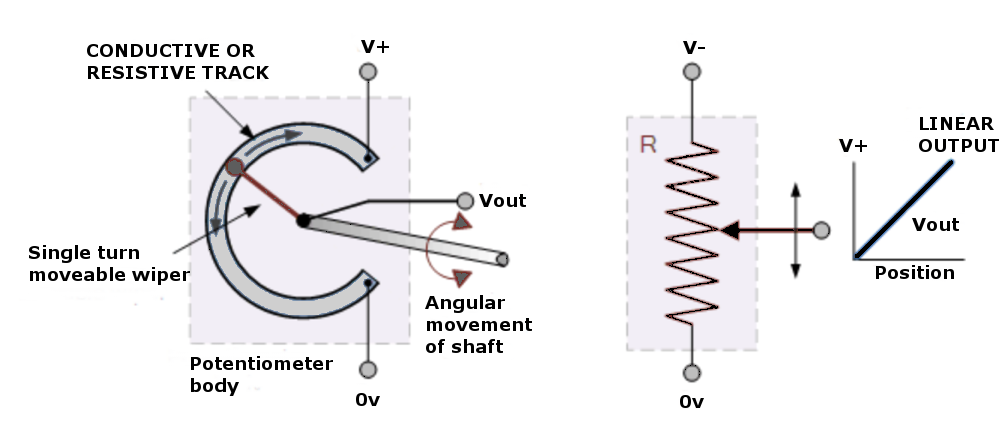

Potentiometric position sensors are resistance-based devices that combine a stationary resistive track with a wiper attached to the object whose position needs to be sensed. Movement of the object moves the wiper along the track. The object’s position is measured with a fixed dc voltage using the track and wiper to form a voltage divider network to measure either linear or rotary motion（图1）。Potentiometric sensors are low cost but typically have low accuracy and repeatability.
Inductive position sensors
Inductive position sensors use changes in the characteristics of a magnetic field that is induced in the coils of the sensor. Depending on their architecture, they can measure linear or rotary positions. A linear variable differential transformer (LVDT) position sensor uses three coils wound on a hollow tube; a primary coil and two secondary coils. The coils are connected in series with the phase relationship of the secondary coils 180° out of phase with respect to the primary coil. A ferromagnetic core called the armature is placed inside the tube and is connected to the object whose position is being measured. An excitation voltage is applied to the primary coil, which induces an electromagnetic force (EMF) in the secondary coils. By measuring the voltage difference between the secondary coils, the relative position of the armature, and the object it’s attached to, can be determined. A rotary voltage differential transformer (RVDT) uses the same technology to track rotational positions. LVDT and RVDT sensors provide good accuracy, linearity, resolution, and high sensitivity. They are frictionless and can be sealed for use in harsh environments.
Eddy Current Position Sensors

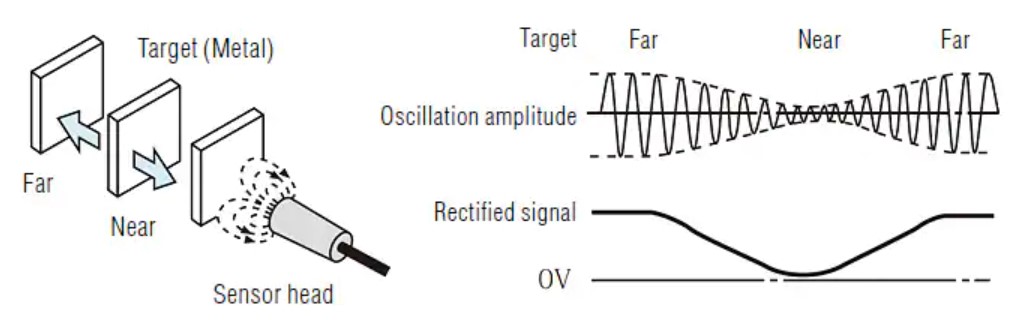

涡流假定ion sensors work with electrically conductive objects. Eddy currents are induced currents that occur in a conductive material in the presence of a changing magnetic field. These currents flow in closed loops and generate a secondary magnetic field. An eddy current sensor consists of a coil and linearization circuit. An alternating current energizes the coil to generate the primary magnetic field. As the object moves closer or further away from the coil, its position can be sensed using the interaction of the secondary field generated by the eddy currents, which impacts the coil’s impedance. As the object gets closer to the coil, the eddy current loss increases, and the oscillation voltage becomes smaller（图2）。The oscillation voltage is rectified and processed through a linearization circuit to produce a linear dc output proportional to the object’s distance.
Eddy current devices are robust non-contact, and often used as proximity sensors. They are omnidirectional and can determine the relative distance to the object but not the direction or the absolute distance to an object.
Capacitive position sensors
As their name suggests, capacitive position sensors measure changes in capacitance to determine the position of the object being sensed. These non-contact sensors can be constructed to measure linear or rotational positions. They consist of two plates separated with a dielectric material and use one of two methods to detect the position of the object:
- 更改电容器的介电常数
- Changing the overlapping area of the capacitor plates
To cause changes in the dielectric constant, the object whose position is to be detected is attached to the dielectric material. As the dielectric material moves, the capacitor’s effective dielectric constant changes due to the changing combination of dielectric material area and the dielectric constant of air. Alternatively, the object can be attached to one of the capacitor plates. As the object moves, the plates move closer or farther apart, and the change in capacitance is used to determine the relative position.
电容传感器可以测量对象位移，距离，位置和厚度。由于其高信号稳定性和分辨率，在实验室和工业环境中使用了电容式位移传感器。例如，电容传感器用于测量膜厚度和在自动过程中的粘合剂的应用。在工业机器中，它们用于监视位移和工具位置。
Magnetostrictiveposition sensors

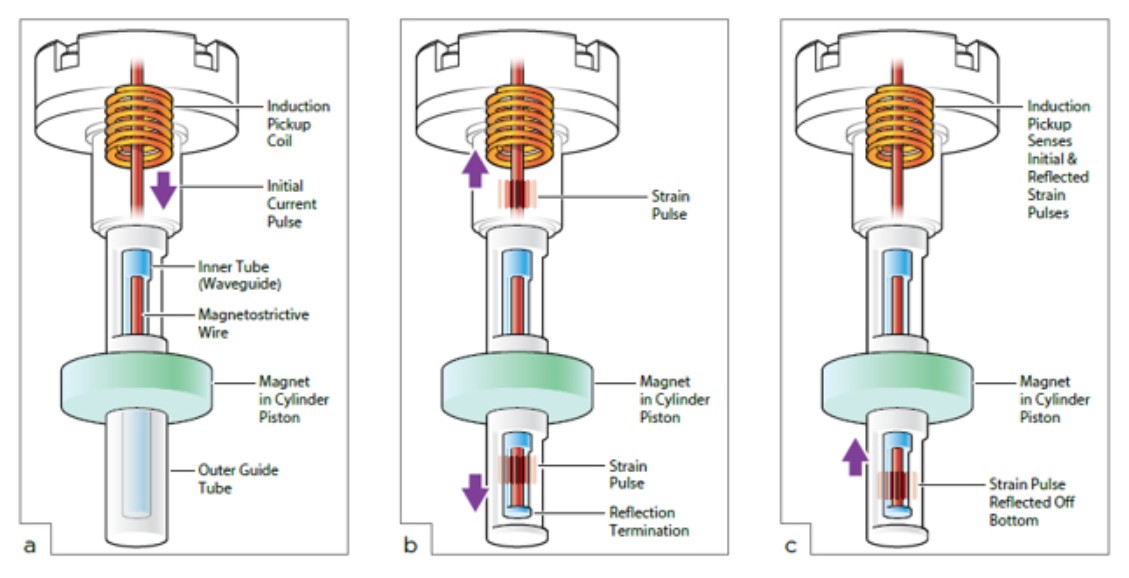

Magnetostriction is a property of ferromagnetic materials that causes the material to change its size or shape in the presence of an applied magnetic field. In a magnetostrictive position sensor, a moveable position magnet is attached to the object being measured. It includes a waveguide, which consists of a wire through which a current pulse is transmitted, connected to a sensor located at the end of the waveguide(Figure 3)。When a current pulse is sent down the waveguide, a magnetic field is created in the wire that interacts with the axial magnetic field of the permanent magnet (magnet in cylinder piston, in图3A）。场相互作用是由引起电线应变的扭曲（Wiedemann效应）引起的，产生了沿波导传播的声脉冲，并由传感器检测到波导末端的传感器(Figure 3b)。通过测量当前脉冲的启动与声音脉冲检测之间的经过的时间，位置磁体的相对位置，因此可以测量对象(Figure 3c)。
磁致伸缩传感器非接触式位置sensors and are used to detect linear position. The waveguide is usually housed in a stainless steel or aluminum tube, enabling these sensors to be used in dirty or humid environments.
Hall Effect position sensors

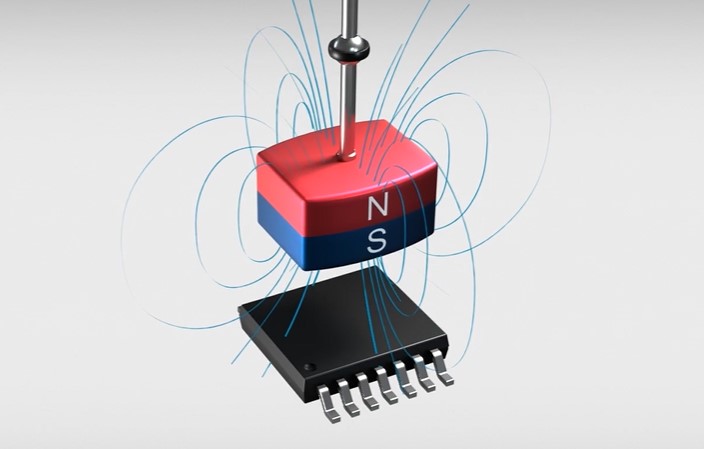

When a thin, flat conductor is placed in a magnetic field, any current flowing tends to accumulate on one side of the conductor, resulting in a potential difference called the Hall voltage. If the current in the conductor is constant, the magnitude of the Hall voltage will reflect the strength of the magnetic field. In a Hall effect position sensor, an object is connected to a magnet housed in the sensor shaft. As the object moves, the position of the magnet changes relative to the Hall element, generating a varying Hall voltage. By measuring the Hall voltage, the object’s position can be determined. Specialized Hall effect position sensors are available that can determine positions in three dimensions（图4）。Hall effect position sensors are non-contact devices that provide high reliability and fast sensing and can operate over wide temperature ranges. They are used across a range of consumer, industrial, automotive, and medical applications.
Fiber-optic position sensors
There are two basic types of fiber optic sensors. In intrinsic fiber optic sensors, the optical fiber is used as the sensing element. In extrinsic fiber optical sensors, the optical fiber is combined with another sensor technology to relay signals to remote electronics for processing. In the case of intrinsic fiber optic position measurements, the time delay can be determined using a device such as an optical time-domain reflectometer. The wavelength shift can be calculated using an instrument implementing optical frequency domain reflectometry. Fiber-optic sensors are immune to electromagnetic interference, can be designed to operate in high temperatures, and do not conduct electricity so that they can be used in proximity to high voltages or flammable materials.
Another type of fiber optic sensing based on Fiber Bragg grating (FBG) technology can also be used for position measurements. An FBG acts as a notch filter that reflects a narrow portion of light centered around the Bragg wavelength (λB) when illuminated by a broad spectrum of light. It’s fabricated as a microstructure inscribed into the core of an optical fiber. FBGs can be fabricated to measure various parameters such as temperature, strain, pressure, tilt, displacement, acceleration, and load.
Optical position sensors
有两种类型的光位置传感器，也称为光学编码器。在一种情况下，将光发送到传感器另一端的接收器。在第二种类型中，发射的灯信号从受监视的对象反射并返回到光源。根据传感器设计，使用光特性（例如波长，强度，相位或极化）的变化来确定对象的位置。基于编码器的光学位置传感器可用于线性和旋转运动。这些传感器分为三个主要类别。透射光学编码器，反射性光学编码器和干预光学编码器。
Ultrasonic position sensors

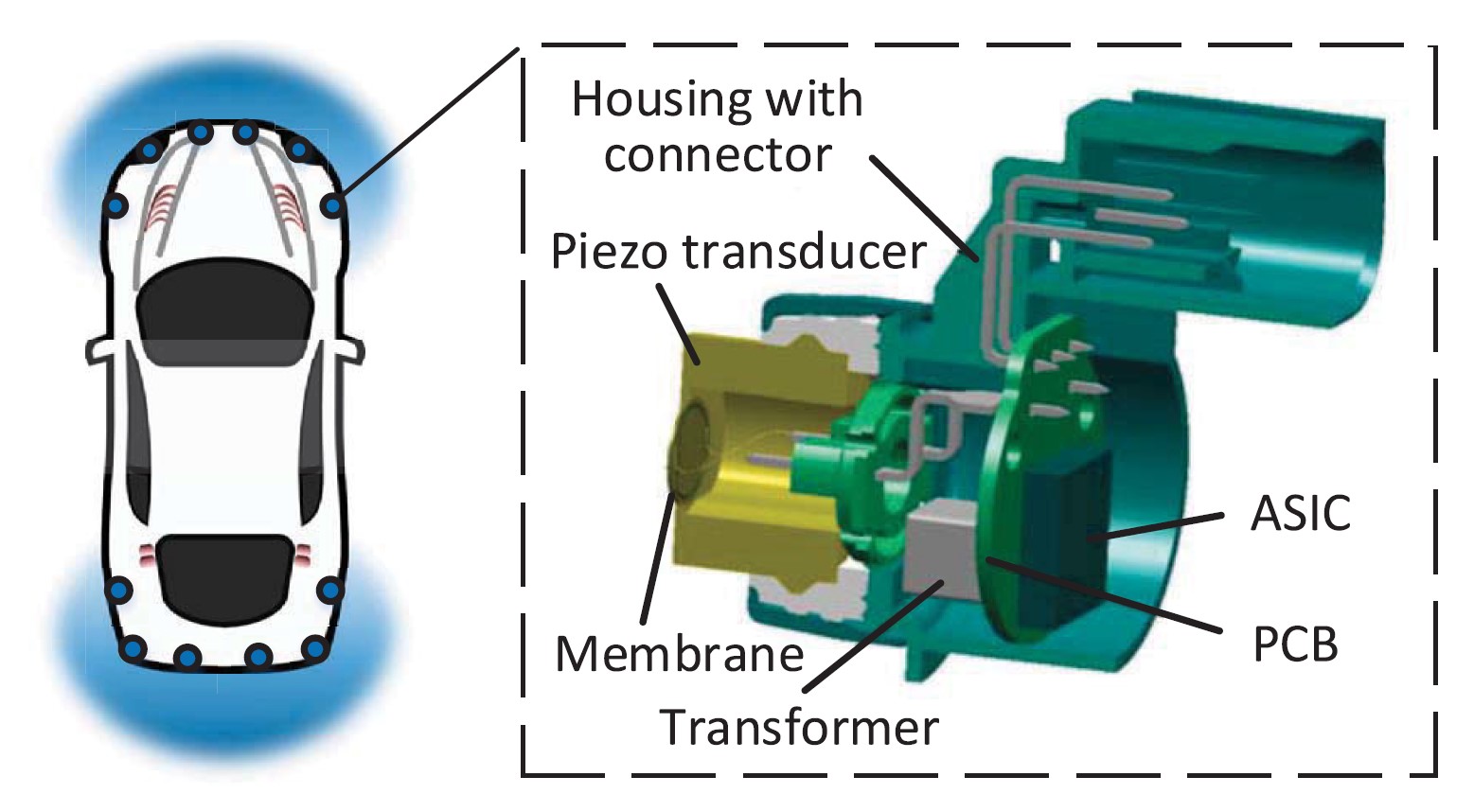

Ultrasonic position sensors use a piezoelectric crystal transducer to emit a high-frequency, ultrasonic sound wave. The sensor measures the reflected sound. Ultrasonic sensors can be used as simple proximity sensors, or more sophisticated designs can provide ranging information. Ultrasonic position sensors work with target objects of various materials and surface characteristics and can detect small objects over a larger distance than many other types of position sensors. They resist vibration, ambient noise, infrared radiation, and electromagnetic interference. Examples of applications using ultrasonic position sensors include liquid level detection, high-speed counting of objects, robotics navigation systems, and automotive sensing. A typical automotive ultrasonic sensor consists of a plastic housing, a piezoelectric transducer with an attached membrane, and a printed circuit board with the electronic circuitry and microcontroller to transmit, receive, and process the signals(Figure 5)。
概括
可以使用位置传感器，可以测量物体的绝对线性或相对线性，旋转和角运动。位置传感器可以测量执行器或电动机等设备的运动。它们还用于机器人和汽车等移动平台上。在具有各种环境坚固性，成本，精度，可重复性和其他属性组合的位置传感器中使用了各种各样的技术。
参考
3D磁性位置传感器, Allegro Microsystems
Analyzing and Enhancing the Security of Ultrasonic Sensors for Autonomous Vehicles, IEEE Internet of Things Journal
How to select a position sensor，剑桥综合电路
位置传感器类型, Ixthus Instrumentation
What is an inductive displacement sensor?, Keyence
What is Magnetostrictive Position Sensing?, Ametek
