Boston Micro Fabrication (BMF), a pioneer in microscale 3D printing systems, unveiled the microArch S240, a micro-precision 3D printer designed to meet the needs of short-run industrial production. This newest printer in BMF’s line combines a larger build volume, faster printing speeds and advanced materials with the same high resolution, accuracy, and precision that the company is known for.

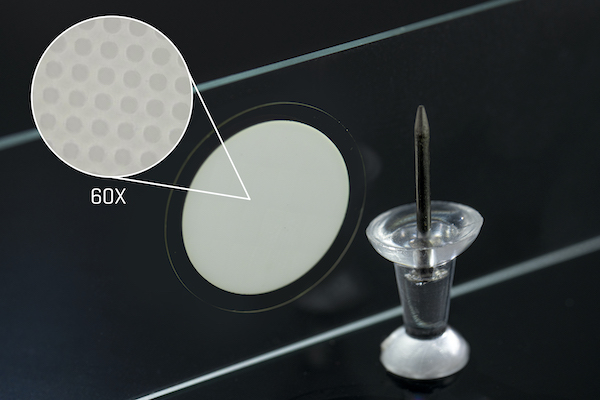

的microArch S240是建立在BMFpatented Projection Micro Stereolithography technology or PµSL, a technique that allows for rapid photopolymerization of an entire layer of liquid polymer using a flash of UV light at micro-scale resolution. The production of intricate, exact, and replicable parts makes PµSL optimal for end-part and prototyping use cases across a range of industries, including medical device manufacturing, microfluidics, MEMS, biotech and pharma, electronics, education, and research and development.

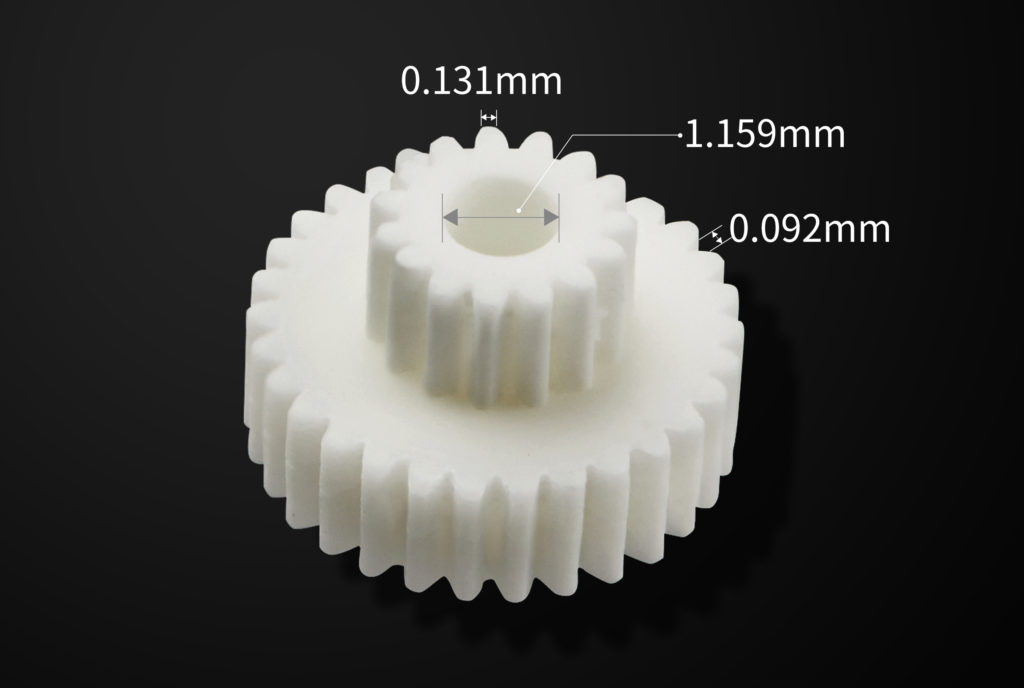

To meet the unique requirements of industrial production, the microArch S240 has a larger build volume (100 X 100 X 75 mm / 750 cm3) and up to ten times faster print speeds, enabling the production of bigger parts, or a higher throughput of smaller parts, while achieving the same 10 µm resolution, +/- 25 µm tolerance as other BMF printers. Users can print using a number of industrial-grade materials with attributes, including mirror finishes, sharp edges and smooth channels, that are suitable for end-use applications or prototypes meant to seamlessly mirror end parts.
“Until now, this coveted combination of quality, strength and resolution had been missing from industrial production, particularly for use cases that require high precision and micron-level resolution,” said John Kawola, CEO – Global of BMF. “With the microArch S240, users can make end-use micro parts at speeds that are required for production, with resolution, accuracy and precision that is true to CAD. Smaller parts no longer need to mean bigger headaches or bigger price tags for manufacturers and engineers.”
Additional features that make the microArch 240 ideal for industrial production include:
• An advanced spreading mechanism to enable higher print speed—resulting in a build speed of up to 10x faster
• Larger build volume allows for the production of much bigger parts and much higher throughput
• The capacity to handle higher molecular weight materials with viscosities of up to 20,000Cp, resulting in the production of stronger functional parts.

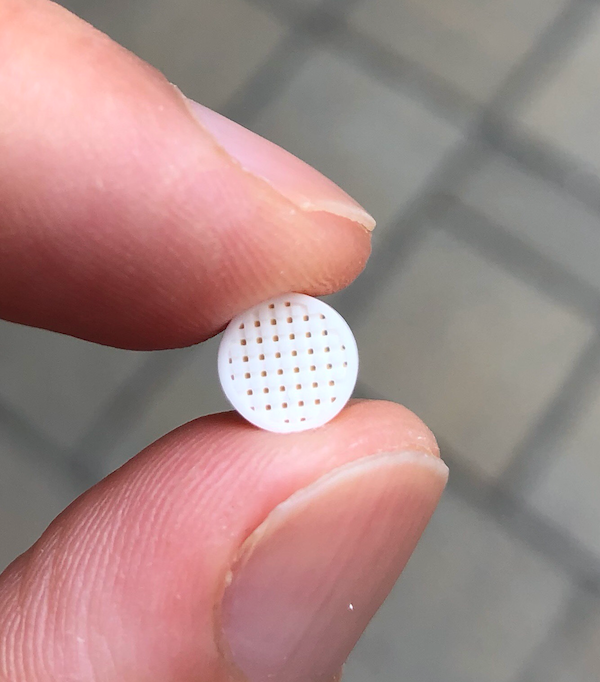

• Ability to print industrial-grade composite polymers and ceramics, including an all-new functional engineering material developed in cooperation with BASF. BMF RG material from the Forward AM Ultracur3D photopolymer resin line is being introduced for use on the microArch 240 with high strength and durability properties meeting the needs of production applications.
“The new BMF RG material from the Forward AM Ultracur3D photopolymer resin line will enable users to achieve ultra-high resolution of their parts,” said Oleksandra Blacka, Business Development Manager – Photopolymers, Medical & Dental, BASF. “The microArch 240 printer is addressing a market that has previously been unserved. This collaboration will now enable customers, especially in the medical industry, to assemble complex items that were too small to handle on previous printing platforms.”
Boston Micro Fabrication (BMF)
www.bmf3d.com
